9g Servo Motor Metal Gear, Micro Servo Motor Kit for Arduino RC Robot Arm Helicopter Airplane
$17.59
About This Product :
- Wide Application: Tiny and lightweight with high output power, this 9g micro servo is ideal for Robot arms, RC Airplane, Helicopter, or Quadcopter.
- High-Quality Metal Gear: This motor servo equipped with metal gear added strength, durability, and less noise.
- The RC Servo support Arduino, Futaba, JR, Sanwa and Hitec remote system
- Stall Torque: 1.5kg/cm(4.8V); 1.8kg/cm(6v); Speed: 0.12 sec / 60°(4.8v) 0.10sec / 60°(6V)
- Warm Tips: This micro servo is suitable for ordinary small models and is not recommended in large-scale toys.
Out of stock
Product Description :
Style:9G Gold Description S8206MD 9g metal gear servo is designed for small fixed-wing airplanes, small cars, robotic arms, etc.
It is a small standard size micro servo with light weight, waterproof and responsive.

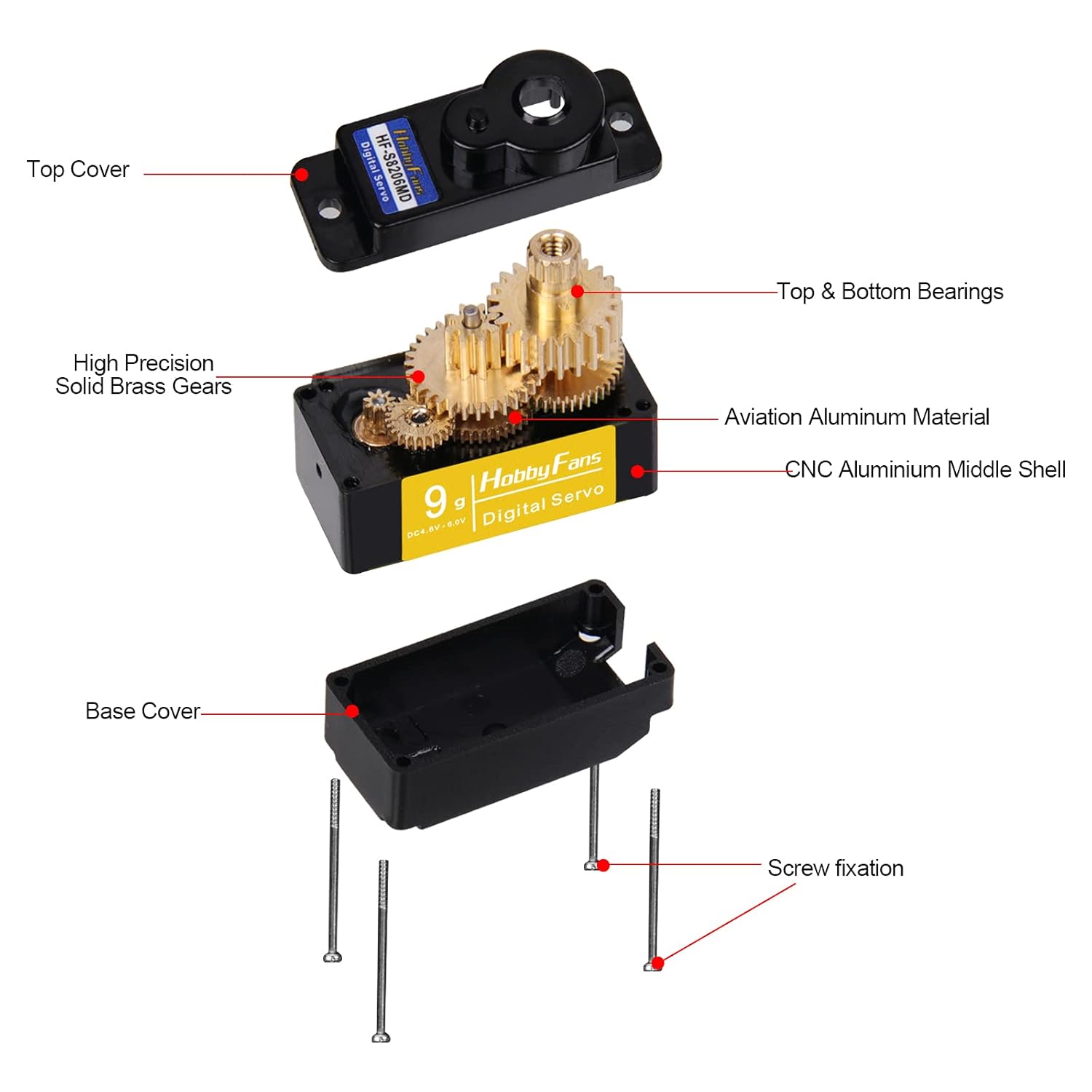

Equipped with metal gear, it can withstand higher loads, service life has been greatly increased.
Electrical Specification: Stall Torque: 1.
5 kg.
cm (4.
8v) Stall Torque: 1.
8kg.
cm (6v) Operating voltage range: 4.
8V – 6V Operating Current: 200mA / 60° Operating Speed (4.
8v): 0.
12 sec / 60° Operating Speed (6v): 0.
10sec / 60° No Load Current: 100mA Model Number: HF-S8206MD Other Specification: Type: RC Servo Motor Type: DC motor Gear Material: Metal Bearing: Single Ball Bearing Servo Wire Length: 25 cm/26AWG Plug Standard: Futaba / JR universal Use: Fixed wing, 450 helicopter, robot Product Specification: Weight: 12g / Size: 23 * 12.
1 * 23.
8mm Package Including 4x S8200MD 9g Digital Servo 4 x Accessories set as shown
Product Details :
| Detail | Value |
|---|---|
| Package Dimensions : | 5.59 x 3.58 x 1.18 inches; 3.21 Ounces |
| Item model number : | 4*HF-8205MG （9g) |
| Date First Available : | July 30, 2021 |
| Dimensions | 5.59 × 3.58 × 1.18 in |
|---|
