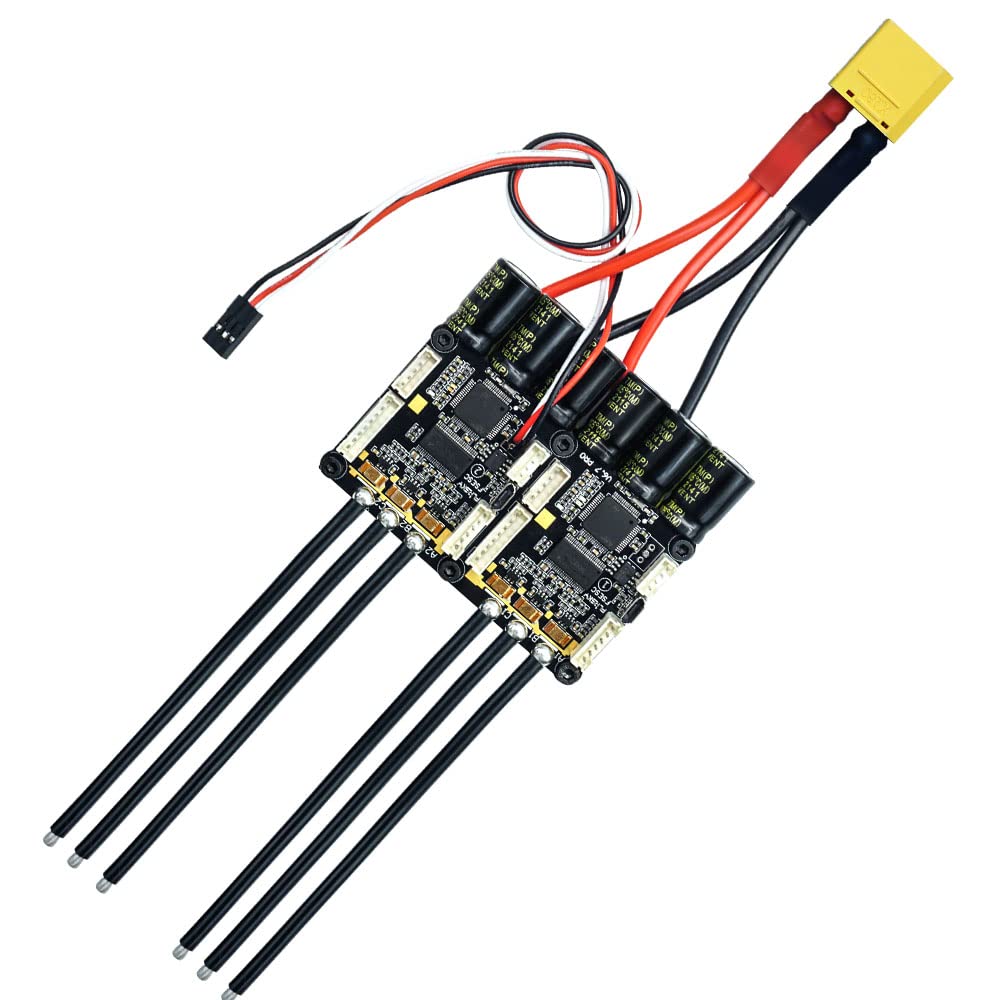

Dual Electric Speed Controller for Skateboard FSESC6.7 140A Base on VESC6.6 with Aluminum Anodized Heat Sink
$172.79
About This Product :
- More Control Modes:Support four control modes: Current/Dutycycle/Speed /Position control mode.
- Upgrade Performance:Latest Version Firmware,support rich control interface and sensors,programmable.Warm tips: It is recommended to keep firmware 5.2 from factory ship, the new firmware upgrade may damage the ESC.
- Support the function of balancing car by connecting the IMU module through the IIC interface; support inertial measurement unit modules such as MPU9250, MPU9150, MPU6050, LSM6DS3, BMI160.
- Continuous current: 140A; instantaneous current: 400A.Voltage: 14V-60V(Cells: 4-13S; safe for 4S to 12S, voltage spikes may not exceed 60V! ).
- Size:79.8*66.8*17.8mm.Widely applications:e-skateboard,ebike,scooter,robot etc.
- Top Service: If there are any question or need help , just feel free contact us , we will always here help you out within 24 hours.
16 in stock
Product Description :
Warm tips:It is recommended to keep firmware 5.
2 from factory ship, the new firmware upgrade may damage the ESC.
Specs:Firmware: Latest Version.
Continuous current: 140A; instantaneous current: 400AVoltage: 14V-60V(Cells: 4-13S; safe for 4S to 12S, voltage spikes may not exceed 60V! )BEC: 5V@1AERPM: 150000Control Interface Ports:USB,CAN,UART,SPI, IICSupported Sensors:ABI，HALL，AS5047，AS5048AInput Set Support:PPM, ADC, NRF, UARTModes:DC, BLDC, FOC (sinusoidal)Regenerative capacity: YesProgrammable: YesMotor wire: 12AWGPower cable:14AWG (with XT90 connector)Size:79.
8*66.
8*17.
8mmFeature:Support four control modes: Current/Dutycycle/Speed /Position control mode.
Protection functions: low voltage protection, high voltage protection, over-current protection, temperature abnormally protection, mosfets over-temperature protection.
Support the function of balancing car by connecting the IMU module through the IIC interface; support inertial measurement unit modules such as MPU9250, MPU9150, MPU6050, LSM6DS3, BMI160.
Product Details :
| Detail | Value |
|---|---|
| Package Dimensions : | 6.42 x 5.04 x 1.46 inches; 8.15 Ounces |
| Item model number : | FSESC6.7 140A Base on VESC6.6 |
| Date First Available : | July 1, 2022 |
| Country of Origin : | China |
| Dimensions | 6.42 × 5.04 × 1.46 in |
|---|
