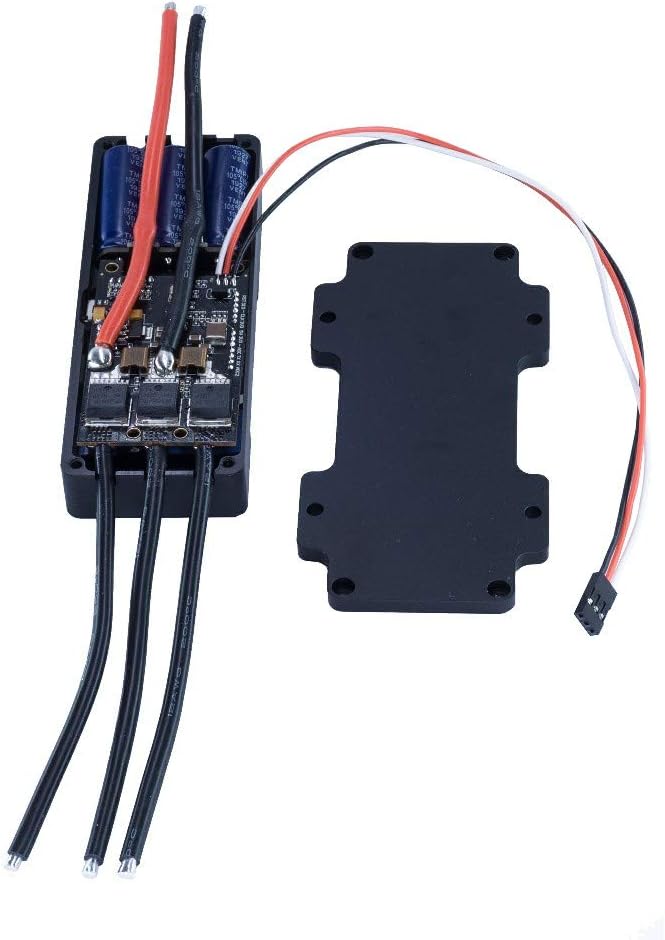

FSESC 4.12 50A Based on ESC 4.12 with Aluminum Case DIY ESC for Skiing Board/E-Robot Electric Speed Controller
$96.79
About This Product :
- Super value: Inculde 1*FSECS4.12+Aluminum Case,1* Mini USB ,1* ESC Sensor Wire,1*Manual.
- The Flipsky ESC is based upon the ESC Open Source Project, and compatible with ESC Software.
- The Flipsky ESC is a highly modifiable electronic speed controller designed with DIY Electric Skateboards conversions in mind.
- The Flipsky ESC allows you to use sensorless motors to achieve smooth start-up from a stop versus traditional RC ESC”s which may have trouble starting from a complete stop. It also provides strong. reliable and progressive electric braking.
- You can connect your ESC to your computer and modify them using the ESC BLDC Tool. Our ESC ships to you tested multiple times during the production cycle and are ready to use. The ESC will provide optimum performance when configured for your particular motor and battery voltage.
- Warm tips: It is recommended to keep firmware 5.2 from factory ship, the new firmware upgrade may damage the ESC.
Out of stock
Product Description :
Warm tips: please do not remove the shrink to protect the pcb electronics components from impurites or metals which result in short circuit or esc burnt damage.
Specs:◆ Hardware:V4.
12 ◆ Firmware: V3.
38◆ 4 layers*3oz copper=12oz copper◆ Amps: 50A continuous, instantaneous current 240A.
◆ Voltage: 8V-60V( Cells: 3-13S LiPo,Safe for 3S to 12S LiPo，Voltage spikes may not exceed 60V! )◆ Recommended 10S battery◆ BEC: 5V@1.
5A◆ BEC type: Internal driver support ◆ Timing: Software calibration ◆ Cutoff Voltage: Programmable◆ Frequency: PWM input ◆ Governor: No◆ Weight: 80g◆ Size: 120x56x20mm◆ Programming card: No◆ Reverse: Yes◆ Motor supported:sensor & sensorless brushless motor ◆ Size(mm):120x56x20mm ◆ Application:50A FSESC for electric longboard/RC Car◆ Motor wire:12AWG◆ Power cable:12AWGThe shipping package contains:1*FSECS4.
12+Aluminum Case1* Mini USB 1* VESC Sensor Wire1*Manual
Product Details :
| Detail | Value |
|---|---|
| Item Package Dimensions L x W x H | 6.38 x 5 x 1.46 inches |
| Package Weight | 0.17 Kilograms |
| Color | Black |
| Material | Aluminum |
| Part Number | FSESC 4.12 with Aluminum Case |
| Style | Skiing Board/E-robot Electric Speed Controller |
| Included Components | 1*FSECS4.12+Aluminum Case 1* Mini USB 1* VESC Sensor Wire 1*Manual |
| Size | 120x56x20mm |
| Date First Available | April 24, 2020 |
| Dimensions | 6.38 × 5 × 1.46 in |
|---|
