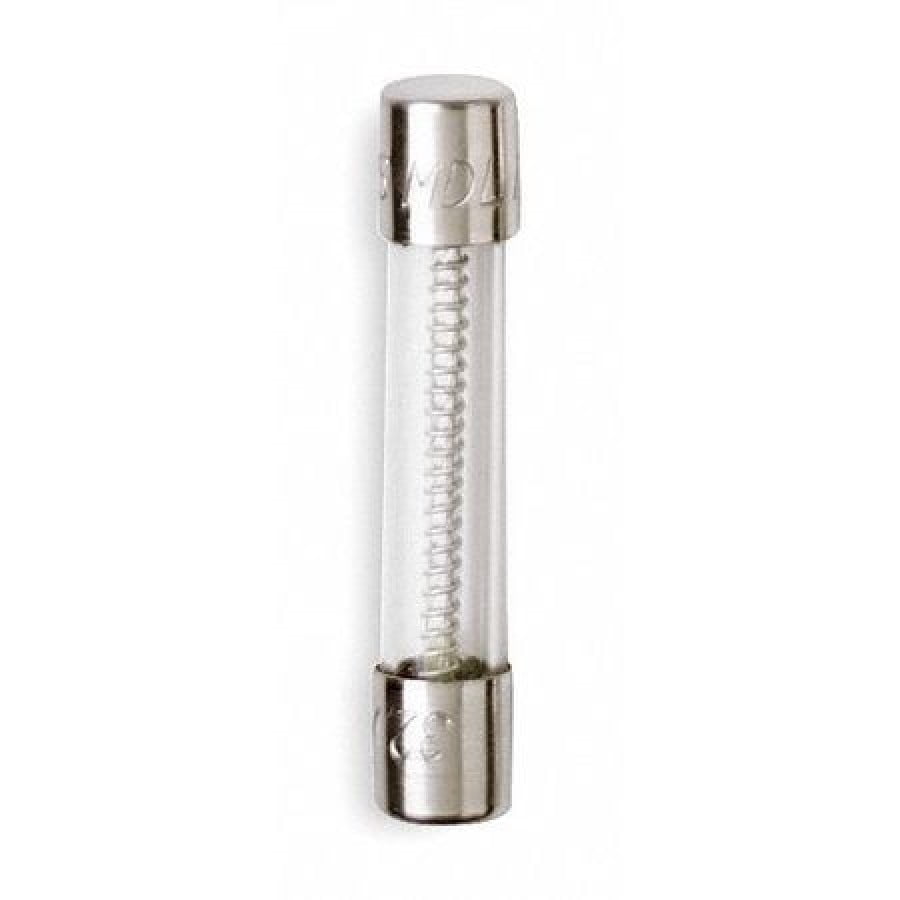

EATON BUSSMANN MDL-5-R 5A Cylindrical Time Delay Glass Fuse , 250VAC

Fuse, 5 A, 250V AC, Not Rated, MDL Series, Glass Fuse, Time Delay, Body Style Cylindrical, Nonrejection, Interrupt Rating 10kA at 125V AC, 200A at 250V AC, Fuse Size 1-1/4 in L x 1/4 in dia, Length 1 1/4 in, Diameter 1/4 in, Equivalent Brand and Series Bussmann MDL, Bussmann MDQ, Bussmann MDV, Bussmann MDX, Littelfuse 313, Littelfuse 315, Mersen GDL, Mersen GDV, Equivalent Series 313, 315, GDL, GDV, MDL, MDQ, MDV, MDX, Body Material Glass

Features

• Item: Fuse
• Standards: CE, CSA Certification Class 1422-01, UL 248-14 Guide JDYX
• Body Material: Glass
• Fuse Amps: 5A
• Body Style: Cylindrical
• Fuse Speed: Time Delay
• Fuse Holder Code: G
• Fuse Voltage Rating: 250VAC
• Length: 1 1/4 in
• Series: MDL
• Functionally Equal To: Bussmann MDQ, MDV, MDX, Littelfuse 313, 315, Mersen/Ferraz Shawmut GDL, GDV
• Green Environmental Attribute: RoHS 2011/65/EU Compliant
• Fuse Interrupt Rating: 200A at 250VAC, 10kA at 125VAC
• Element: Single
• In Line Fuseholder: G
• Rejection / Nonrejection: Nonrejection
• Diameter: 1/4 in
• Indicating / Nonindicating: Indicating
• Interrupt Rating: 10kA at 125V AC, 200A at 250V AC
• Speed: Time Delay
• Equivalent Brand and Series: Bussmann MDL, Bussmann MDQ, Bussmann MDV, Bussmann MDX, Littelfuse 313, Littelfuse 315, Mersen GDL, Mersen GDV
• Compatible Fuse Block Series: 3823, HFA, HHN, HK, HKP, HPF, HRK, HTB, S-8000
• Equivalent Series: 313, 315, GDL, GDV, MDL, MDQ, MDV, MDX
• Amps: 5 A
• Fuse Size: 1-1/4 in L x 1/4 in dia
• AC Voltage Rating: 250V AC
• Visual Indication: Glass Fuse
• DC Voltage Rating: Not Rated
• Fits Fuse Block Style: Nonrejection

"

• Item Type: Fuse
• Brand: EATON BUSSMANN
• Manufacturer Part Number: MDL-5-R
