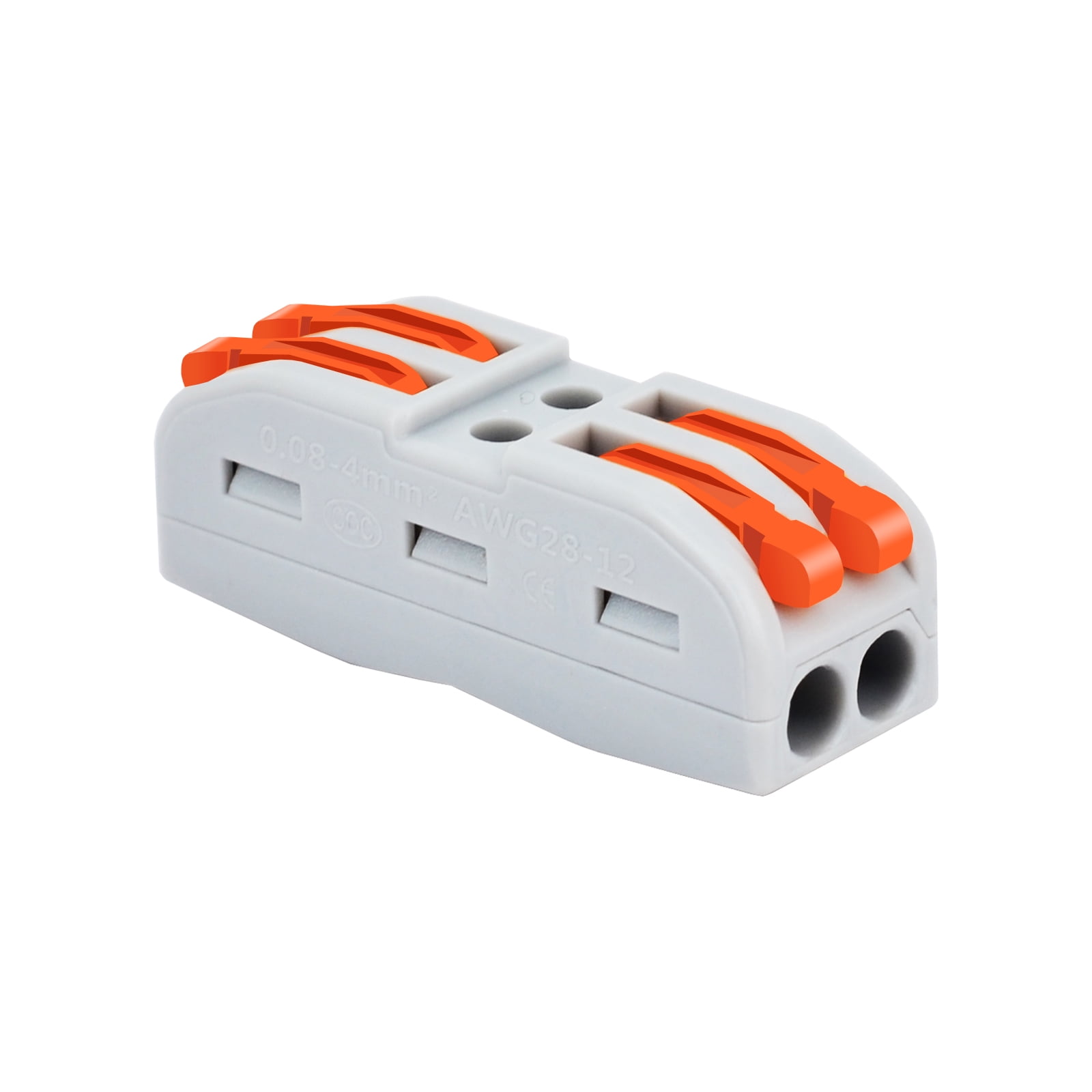

2 Conductor Compact Connectors Lever-Nut Wire Connectors
Describe:
Wire Cross section:AWG 28-12(0.08~4mm2)
Rated Voltage: 110V-600V
Rated Current: 32A
Shell Material: flame retardant PC
Internal Material: PA
Guide Strip: Electrolytic copper (Surface tin plating)
Spring: Nickel chromium alloy steel

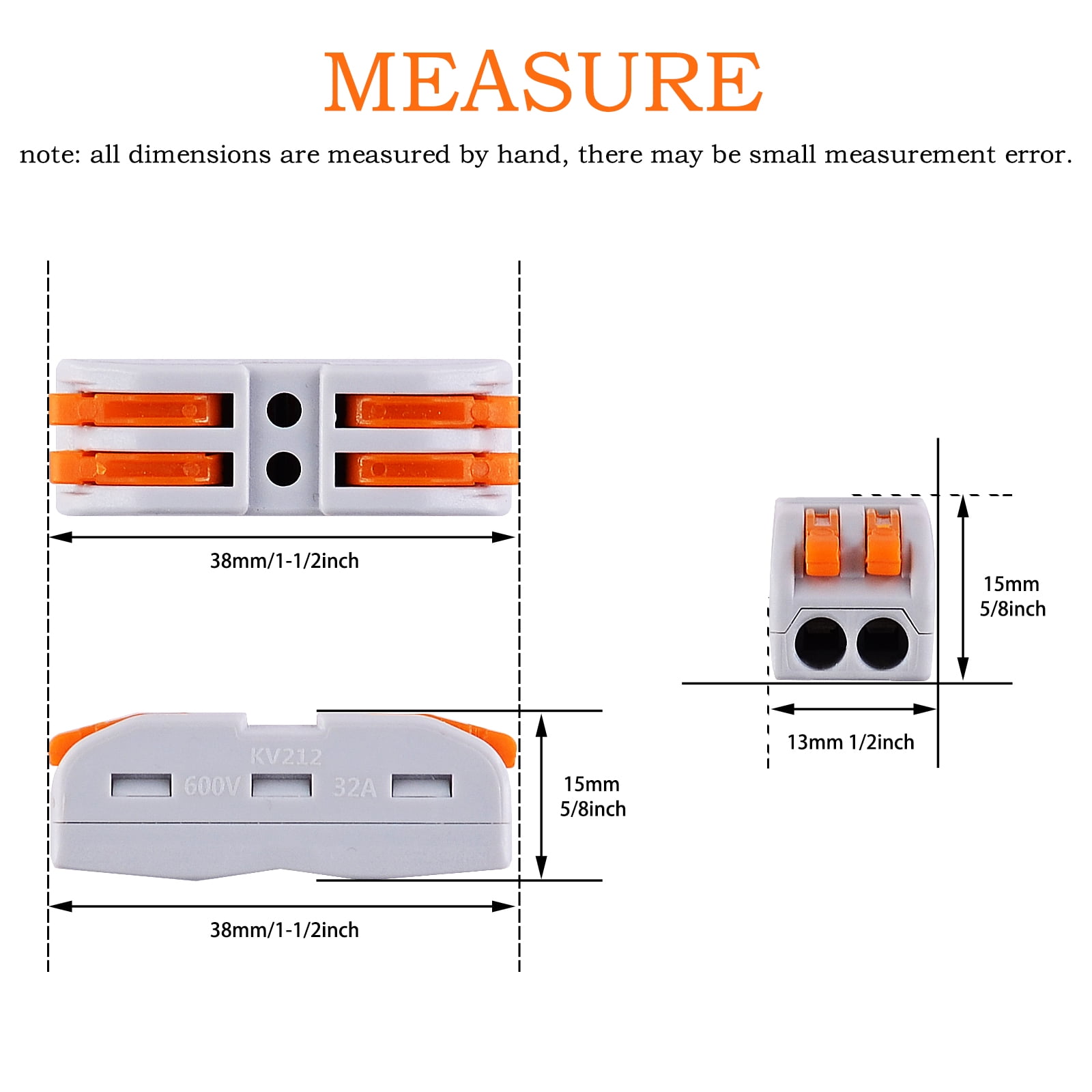

Product Size:
2 Way:1.54"(L)*0.52"(W)*0.57"(H)

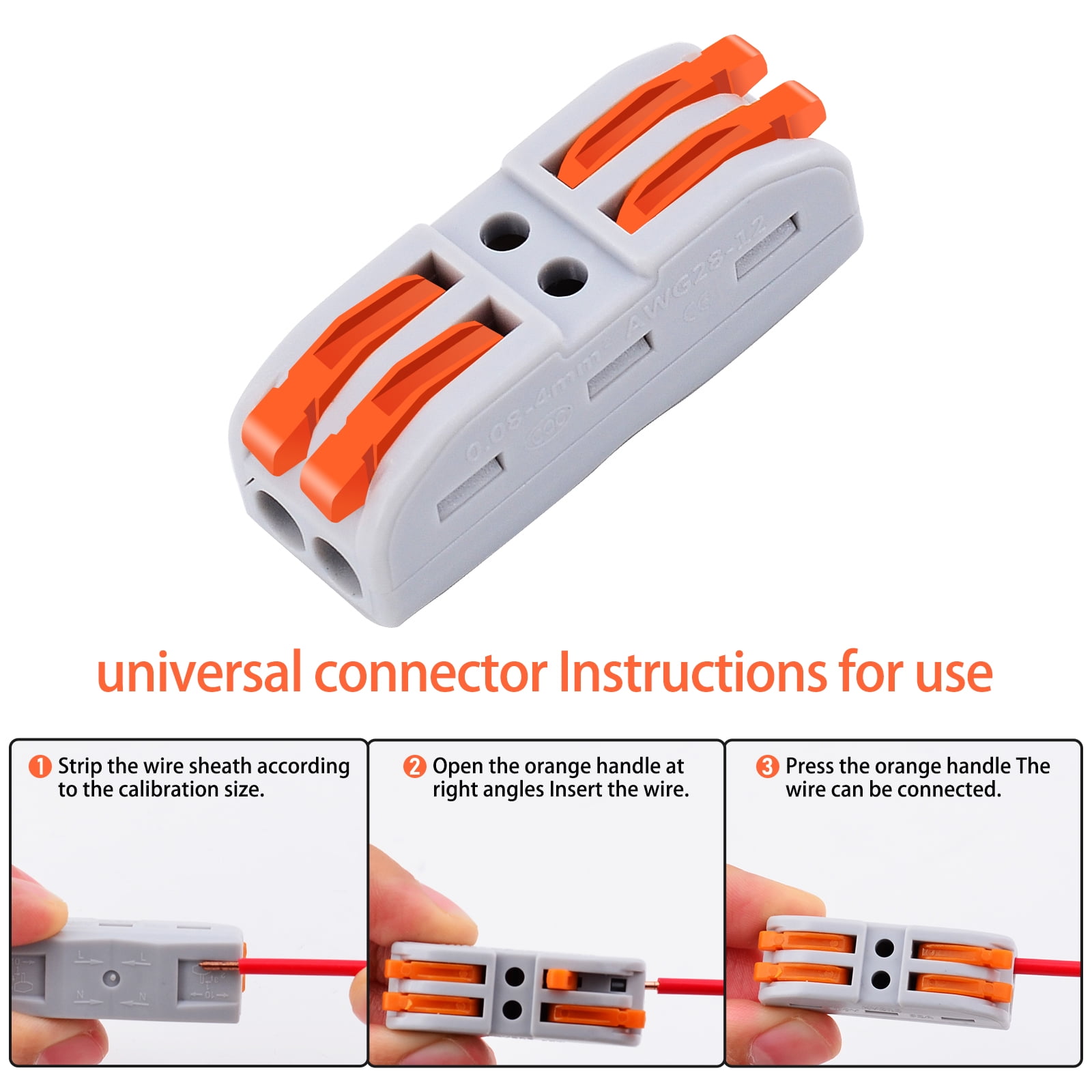

How to use our products:
Step 1 : Strip wire lead to 9-10mm.
Step 2: Open clamping unit and insert your wire lead.
Step 3: Lower lever to close the clamp
- Convenient and practical: Two-way lever nut, which can connect multiple sets of wires, freeing up a good amount of spacea and times, They are compact, super easy, reliable and reusable.Just lift up the lever, insert the stripped wire, and press the lever closed,holds tight and makes a solid connection.keeping electrical boxes relatively roomy and not having to twist a fistful of copper wire together.
- Material : Lever wire connectors with high quality flame retardant insulation material, which has the advantages of long life, corrosion resistance, aging .
- Safe and efficient: It has the fewest installer possibilities for error of any connector, like not tightening wire properly or with sufficient torque. It is very good at preventing thermal cycling release of wires connected together.

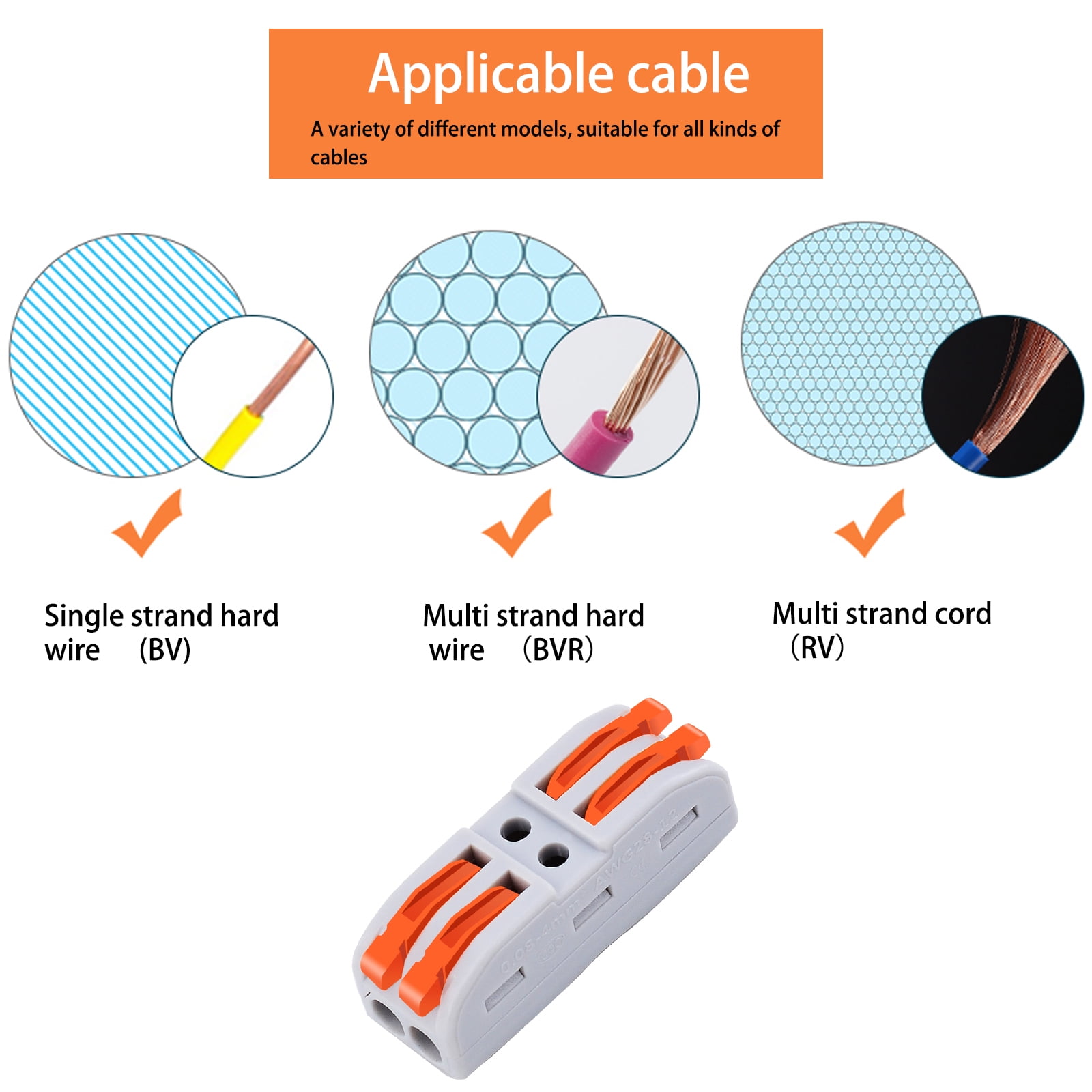

- Universal compatibility: The connector for joining braided and solid wire and wires of differing sizes. They work with most every gauge of normal household wiring: ceiling fans, sockets, switches, cars, motorcycles, ships, loudspeakers, lamps, electrical boxes, chandeliers, light switches, fan controls, and much more.
- Resuable: This Wire Connector is suitable for Soft And Hard wire.Every junction independent shrapnel,different wire managed separately,different diameter can be connect security,there are test hole in every cage surface,electric test no need to remove tape ,intuitive,more easy, What’s more, it is a reusable connector.
