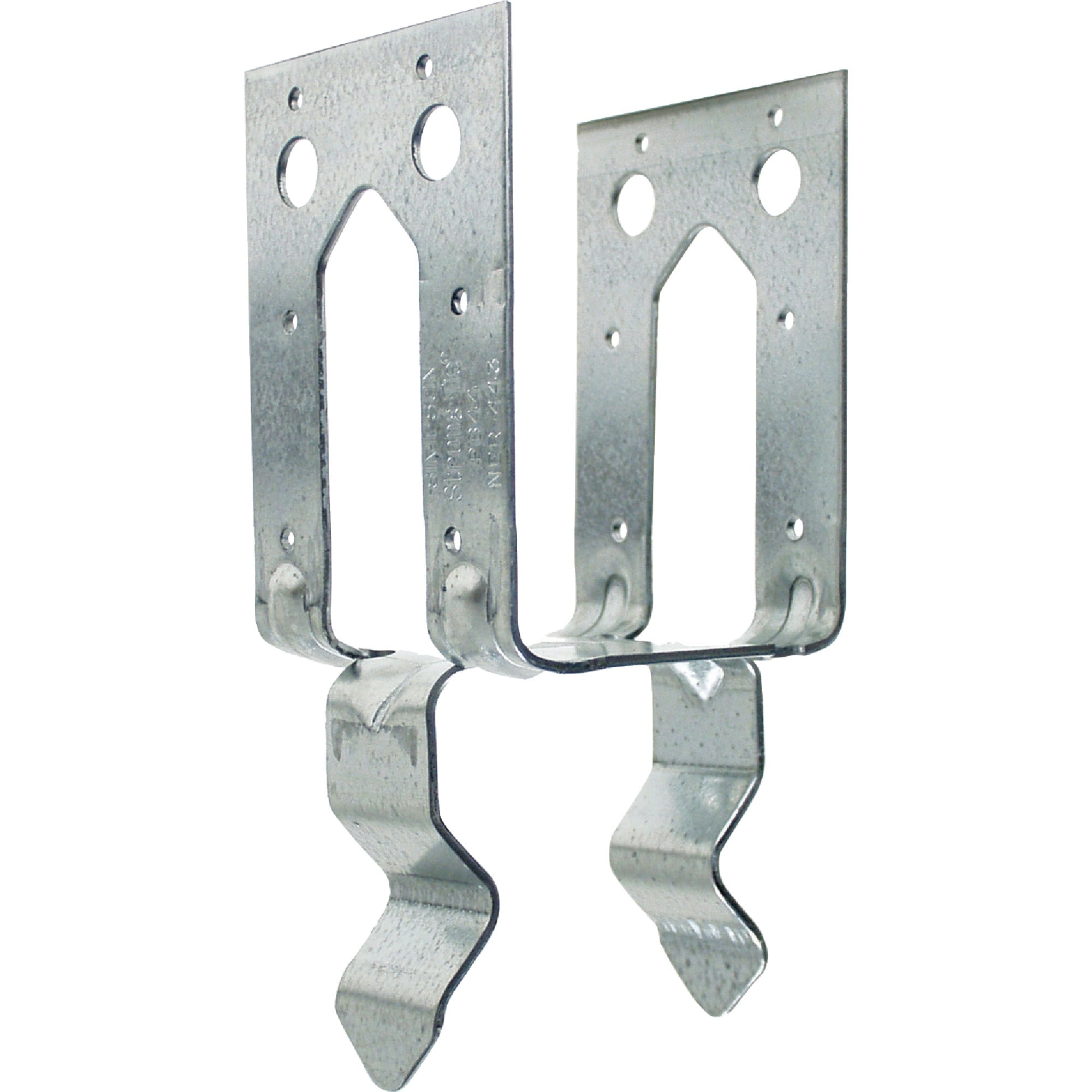

Simpson Strong-Tie 4 In. x 4 In. 12 ga Galvanized PB Post Base PB44 Pack of 10

The PB base embeds in wet concrete after pour and is made to install flush with the concrete surface. This connector was designed to help resist upload forces. Holes are provided for installation with 16d commons. A 2" minimum side cover is required to obtain the full load. Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non top-supported installations (such as fences or carports). 12-gauge galvanized steel. Some sizes available with ZMAX coating. Size: 4 In. x 4 In.
Gauge: 12 ga
Finish: Galvanized
Material: Steel
Dimensions: 3-9/16" W x 3-1/4" L
Type: PB Base
Install With: 16d Fasteners
Uplift: 850 Lb.
Download: 12685 Lb.
The PB base embeds in wet concrete after pour and is made to install flush with the concrete surface. This connector was designed to help resist upload forces. Holes are provided for installation with 16d commons. A 2" minimum side cover is required to obtain the full load. Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non top-supported installations (such as fences or carports). 12-gauge galvanized steel.
