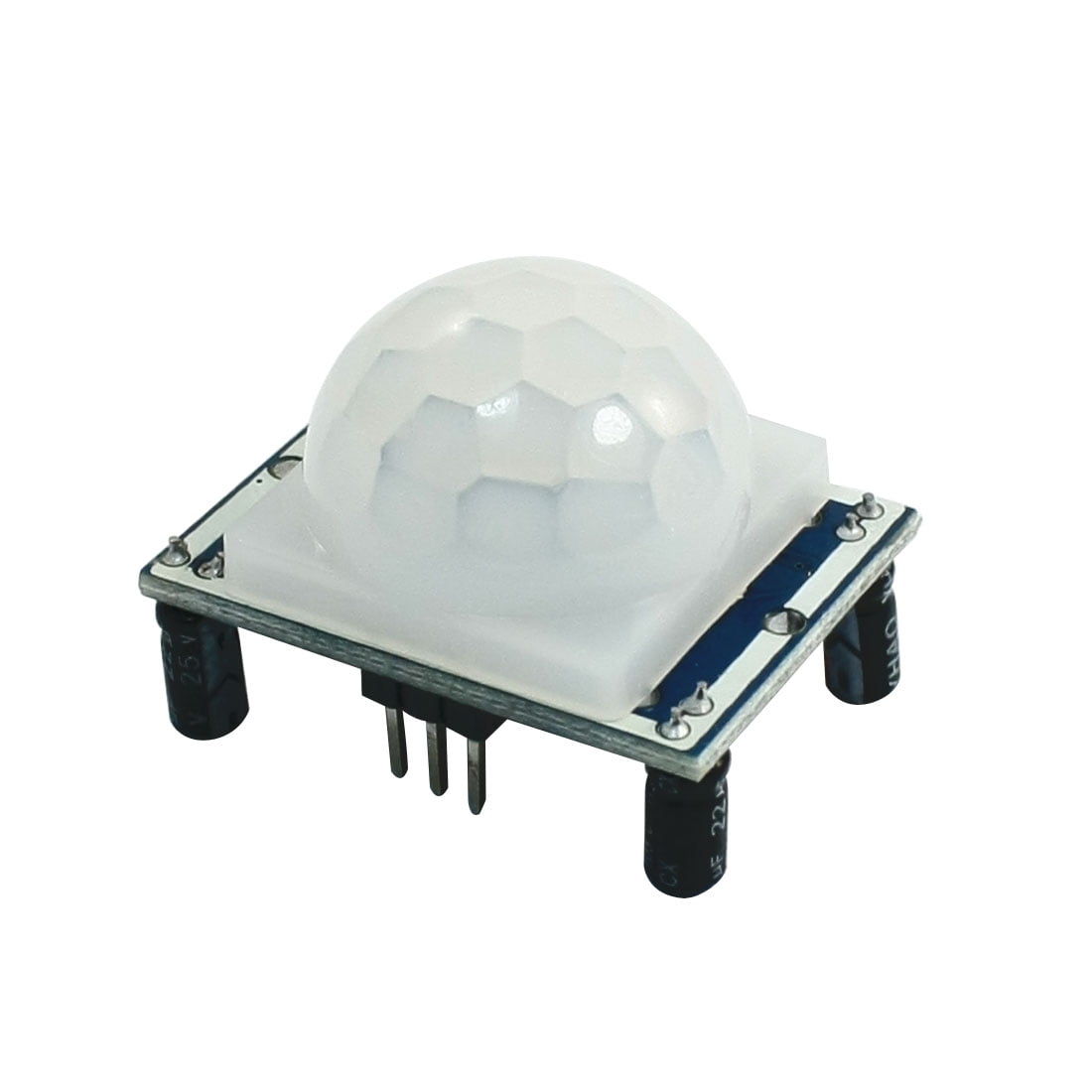

- sensor with control circuit board.
- The sensitivity and holding time can be adjusted.
- Working Voltage Range: DC 5V- 20V.
- Current drain:<65uA.
- Voltage Output: High/Low level signal:3.3V TTL output.
- Detection distance: 3–7M(can be adjusted).
- Detection range: <120°.
- Delay time: 3-10S(can be adjusted, default 3-10s).
- Blockade time: 0.2 S (default).
- Trigger: L: Non-repeatable trigger H: Repeat Trigger (default).
- Work temperature:-15-+75°C.
- Working Voltage : DC 5V-20V;Current Drain : <65uA
- Borad PCB Size : 32 x 2.4 x 1.8mm/ 1.25" x 0.9" x 0.7" (L*W);Ball Dia : 23mm/0.87"
- Mounted Hole Dia : 2mm/0.08";Material : Electric Part
- Net Weight : 9g;Package Content : 1 x Human Sensor Module
| Dimensions | 1 × 1 × 1 in |
|---|
